OptiTrack firmware

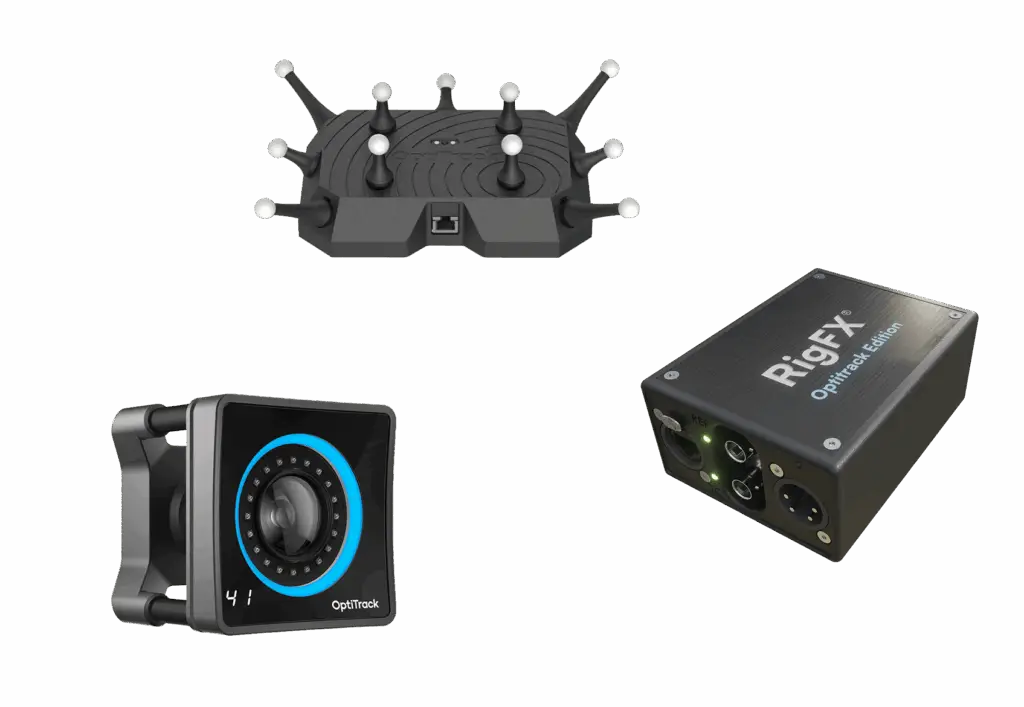

Standard + the OptiTrack input, on RigFX Standard: the pose of one rigid body from Motive over the network, a CinePuck or a marker-tracked camera body for example. Motive 3.0 to 3.5 (NatNet 4.0 to 4.5), streaming in Unicast: Supported versions.

Sources

SourcePose3DFIZLens1D motion
Lens FIZ (sync card)✓
FreeD (3 inputs)✓✓
OpenTrackIO✓✓✓
Canon CV✓
OptiTrack (Motive, one rigid body)✓

Rig presets

Preset What it is Tutorial
CinePuck on camera A CinePuck, or another rigid body, on the camera CinePuck on camera
Tripod + FR7 A Sony FR7 on a tripod. Offered on every firmware —
Slider + FR7 A Sony FR7 on a slider between two tripods. Offered on every firmware —
