Cartoni E-Jibo / Fluid Head Setup

1. Assembly

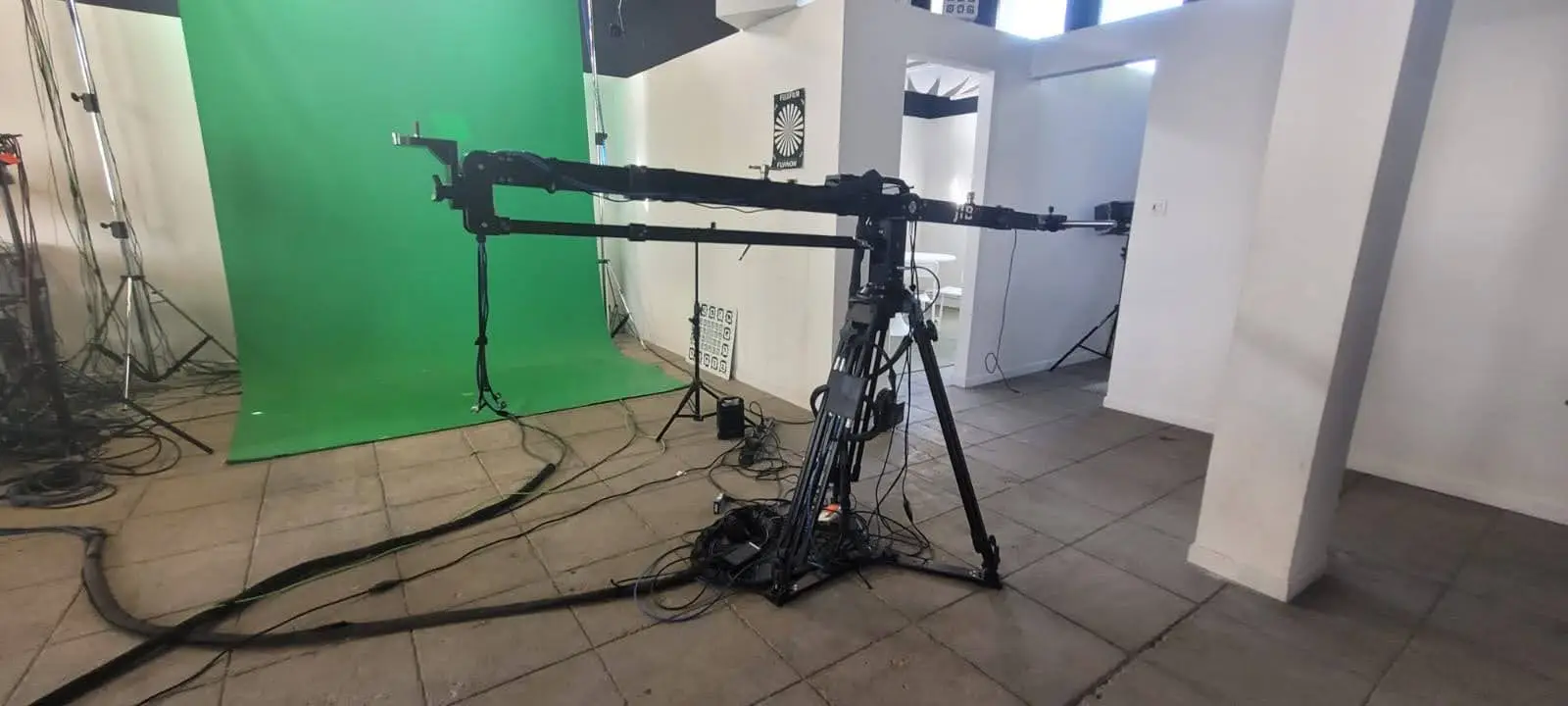

Install the E-Jibo

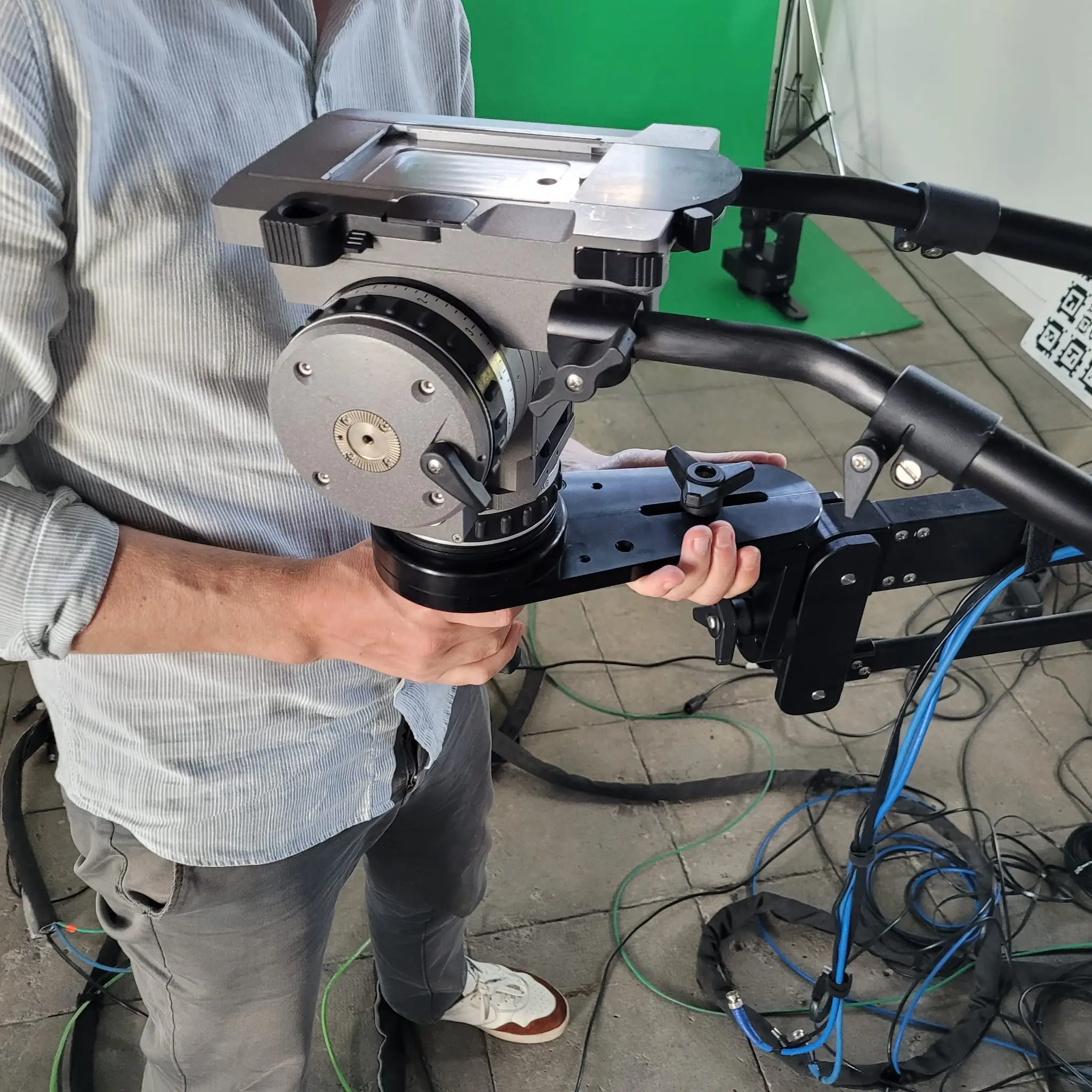

Position the Fluid Head on the front section of the E-Jibo.

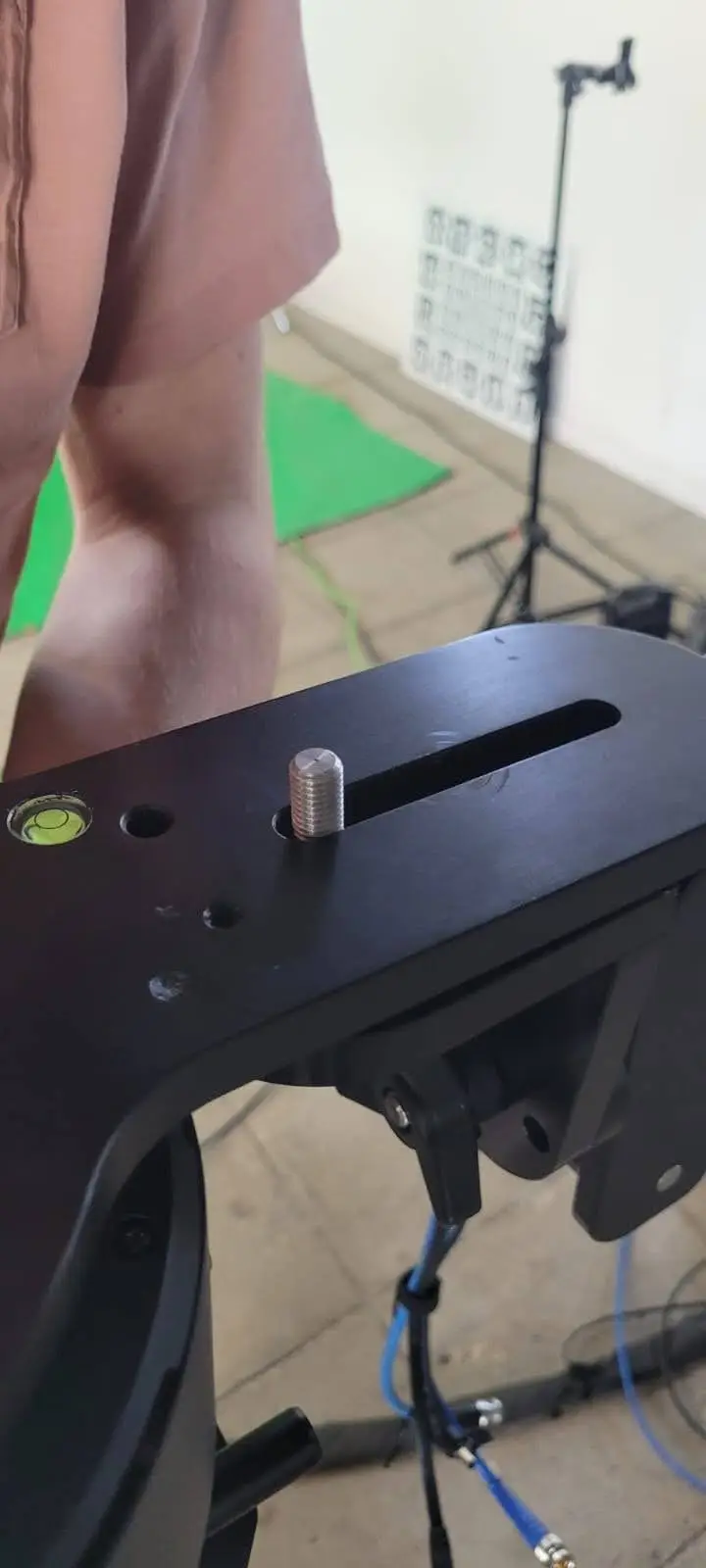

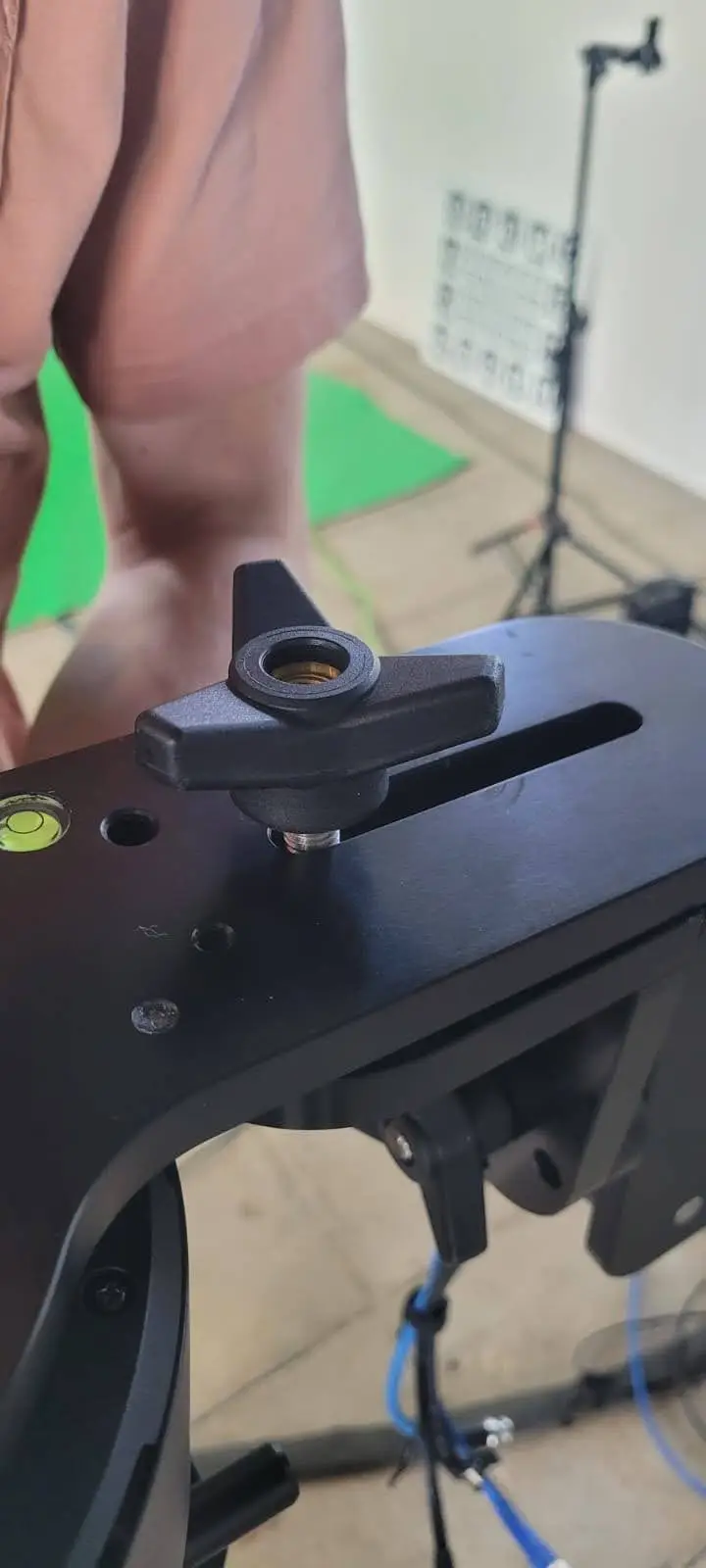

Hand-tighten the knob on the mounting plate.

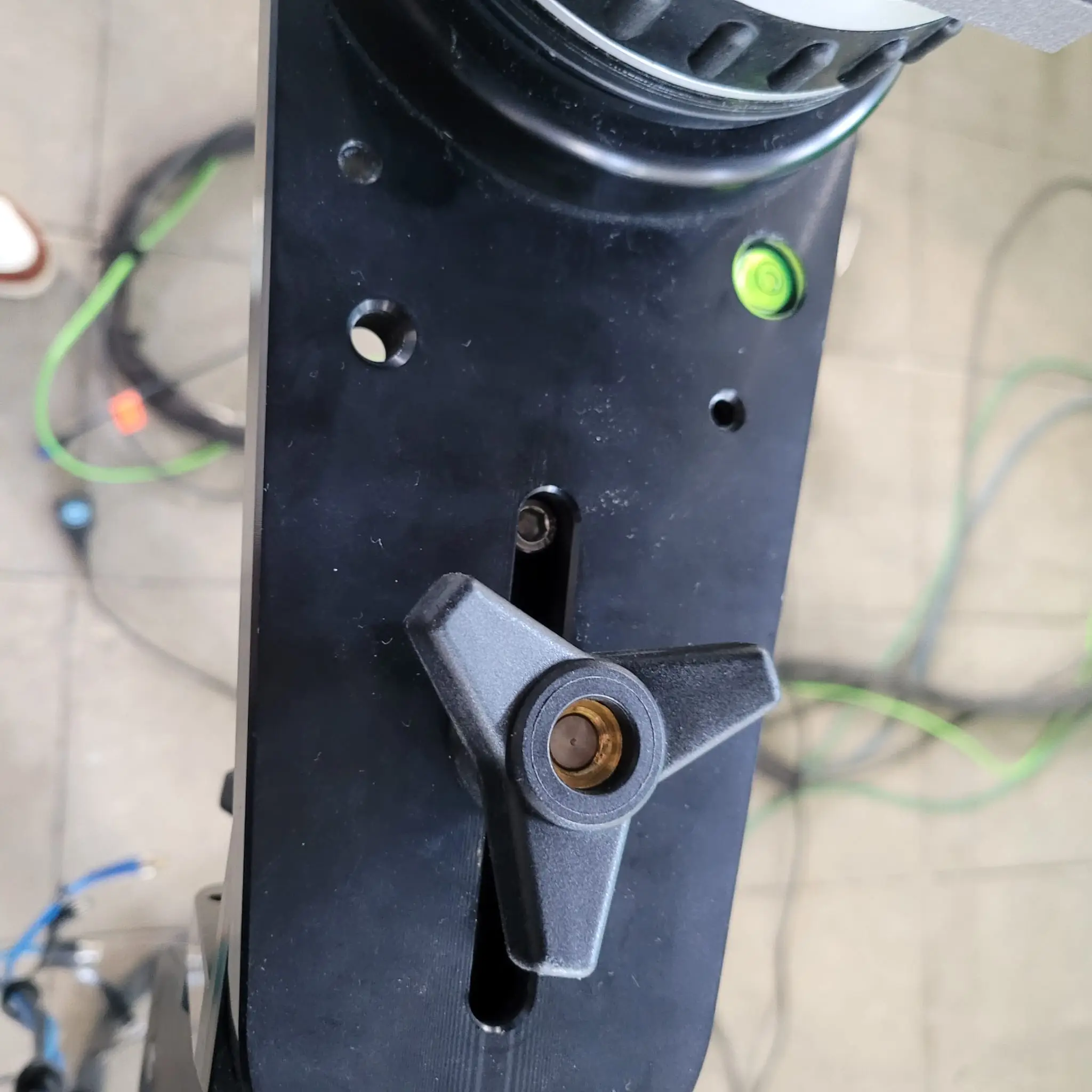

Check the bubble level on the mounting plate.

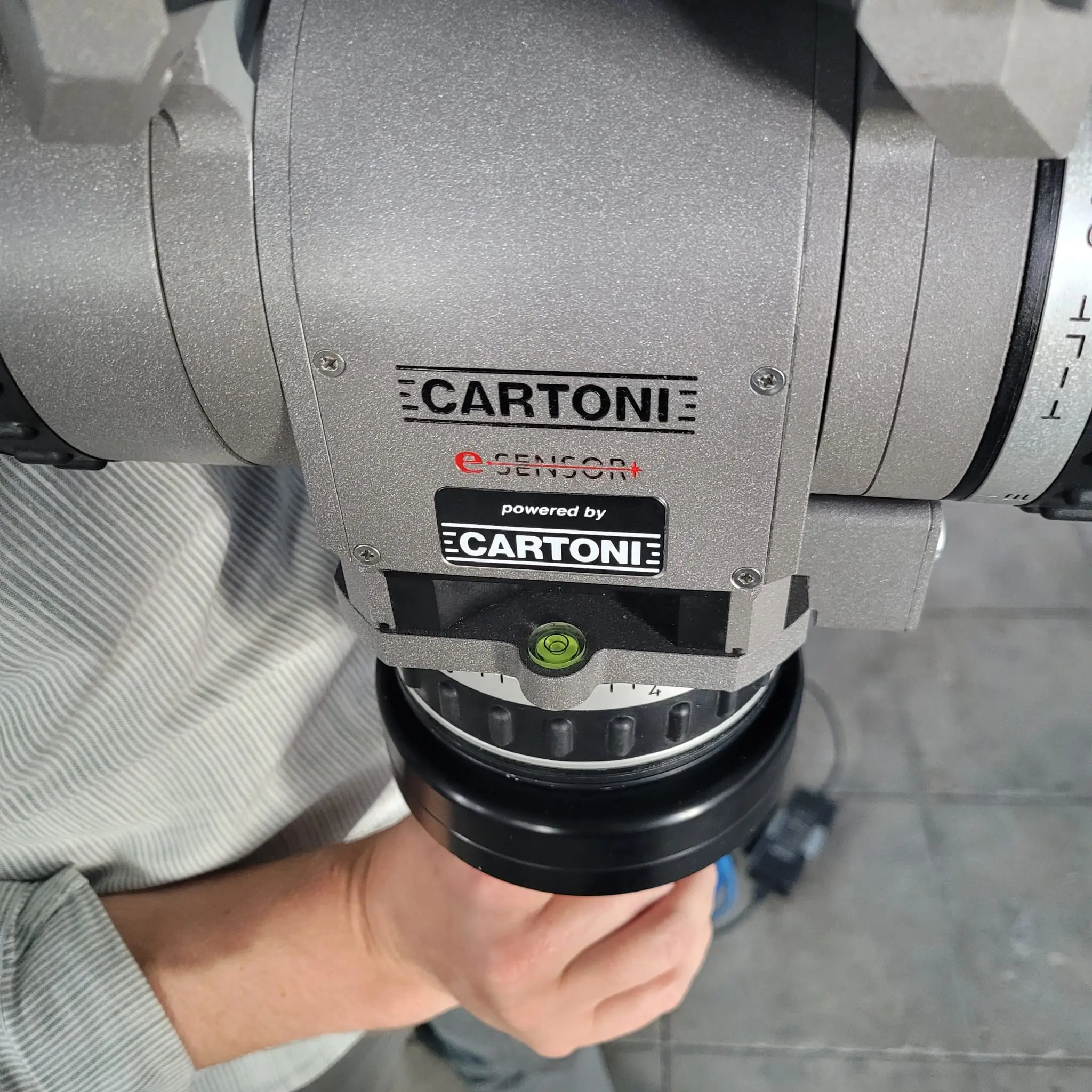

Check the bubble level on the Fluid Head.

Install the camera.

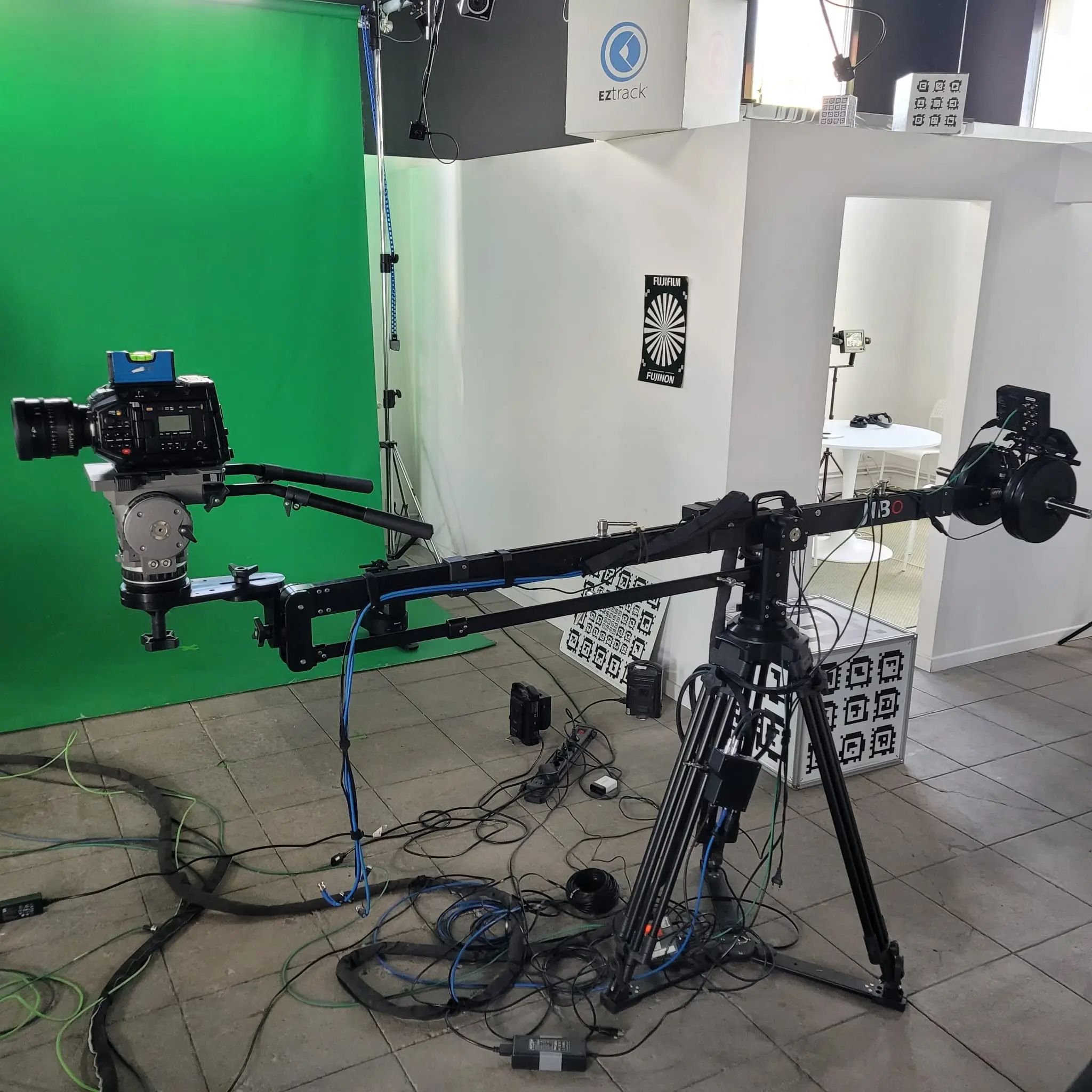

Align the head vertically.

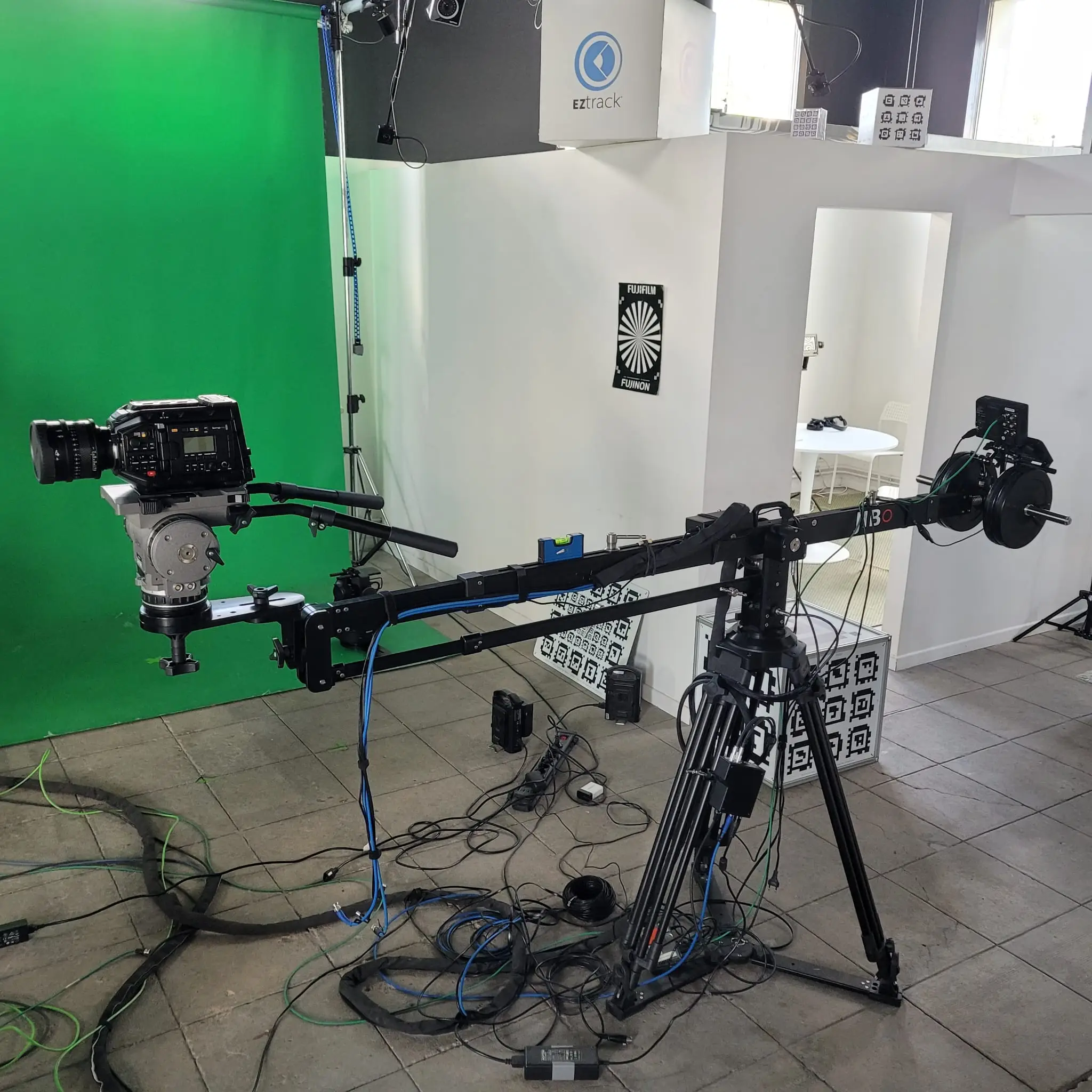

Align the arm vertically.

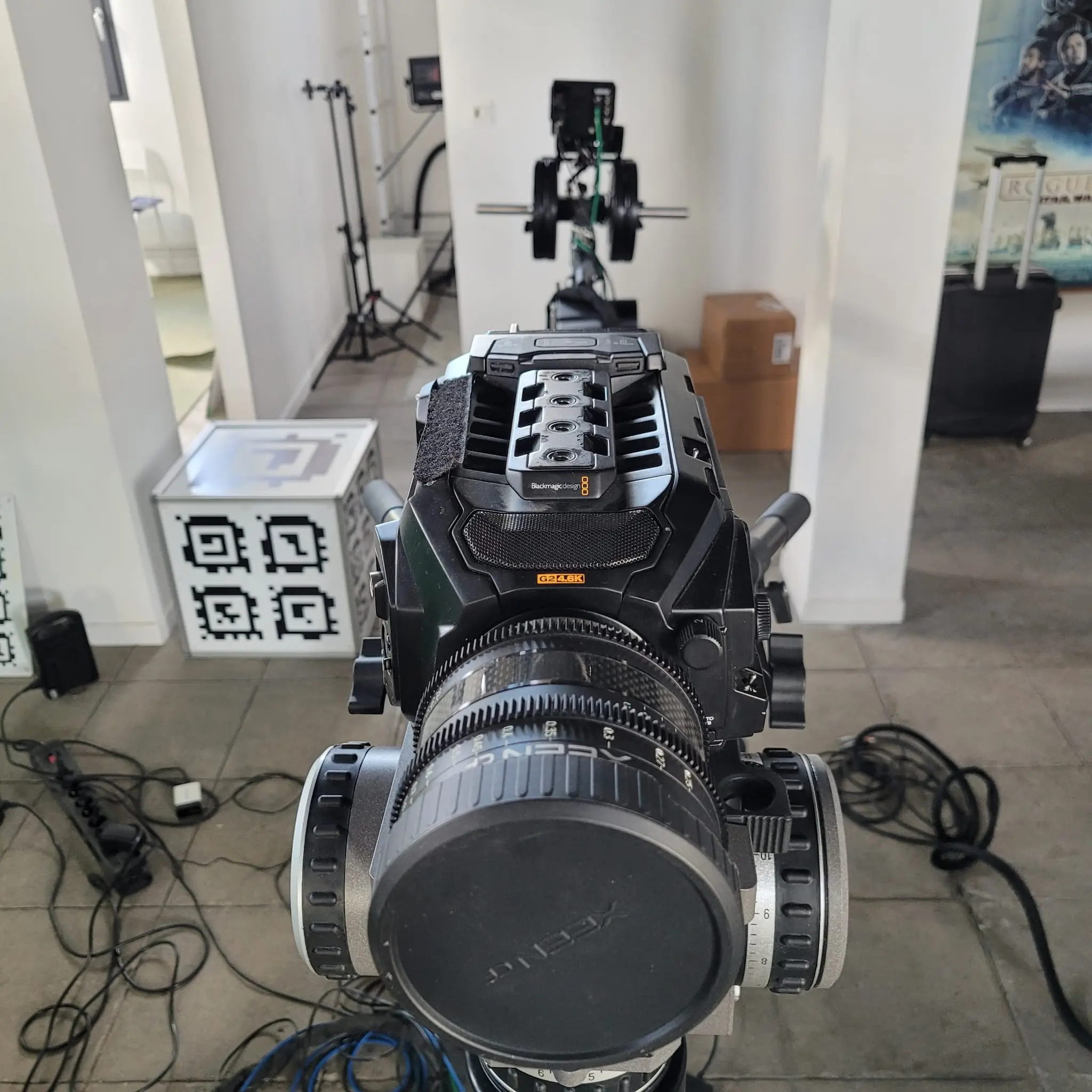

Align the mounting plate/camera with the E-Jibo arm.

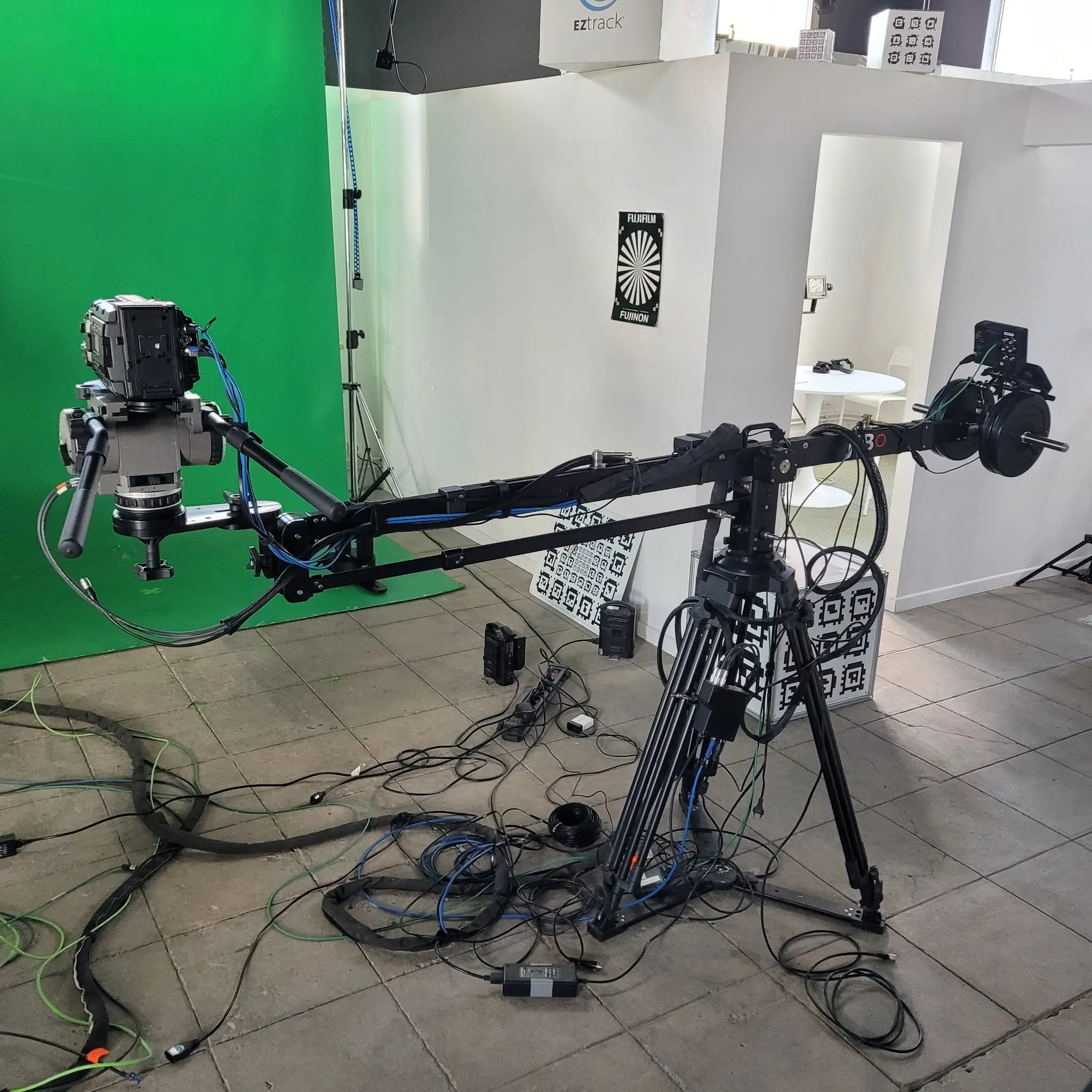

Success

Tadaaaa ! 🎉

2. Axis measurement

The Measurements will be entered into RigFX.

Measure the tripod height (A)

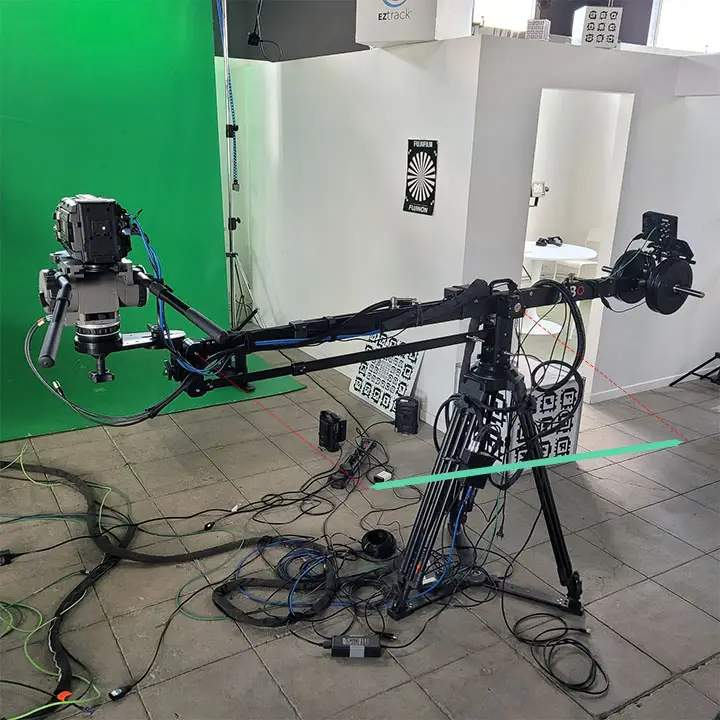

Measure the arm length (B)

Measure the head offset front (C)

Measure the head offset height (D)

3. RigFX Connection

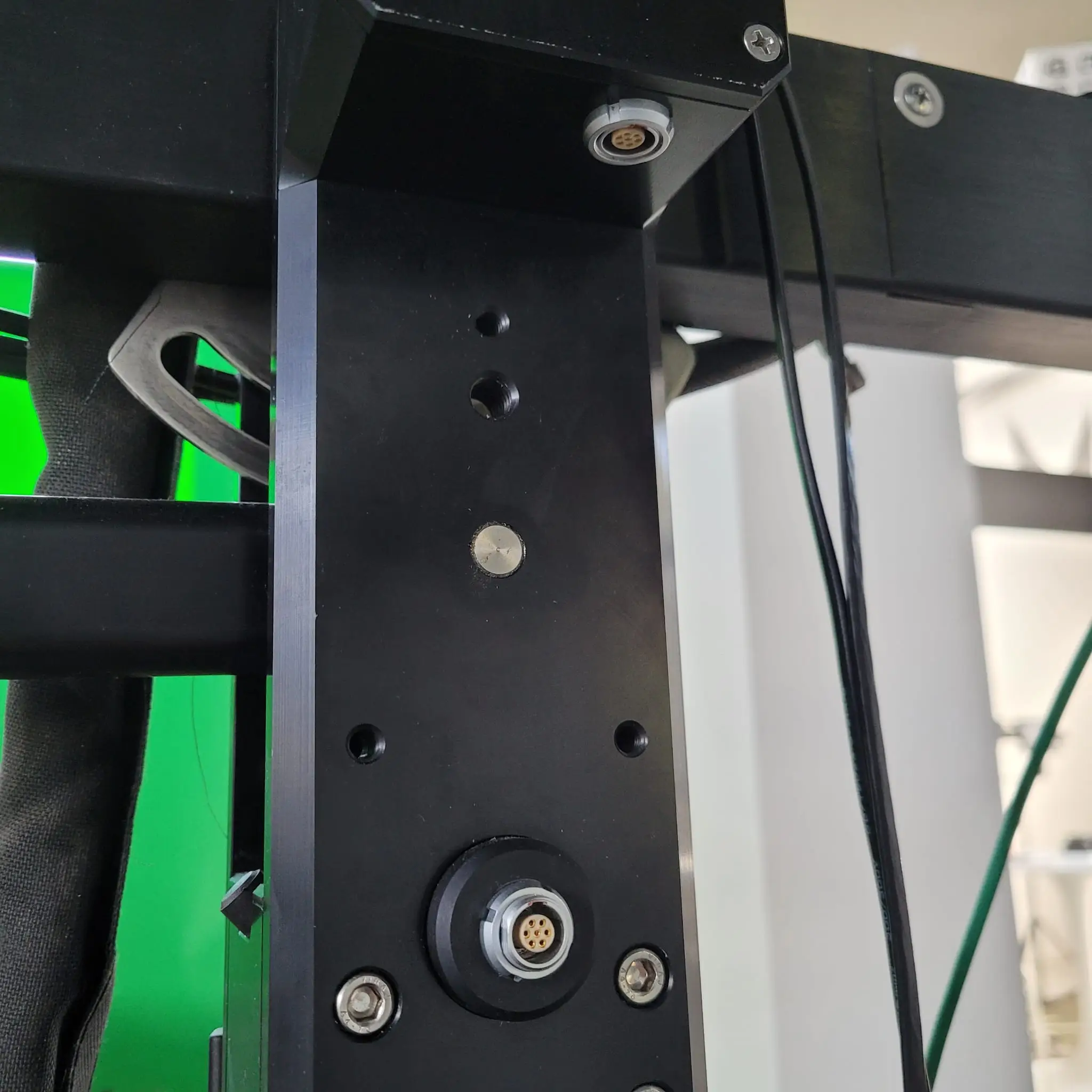

  • plug Pan and Tilt encoder cable into E-Jibo port

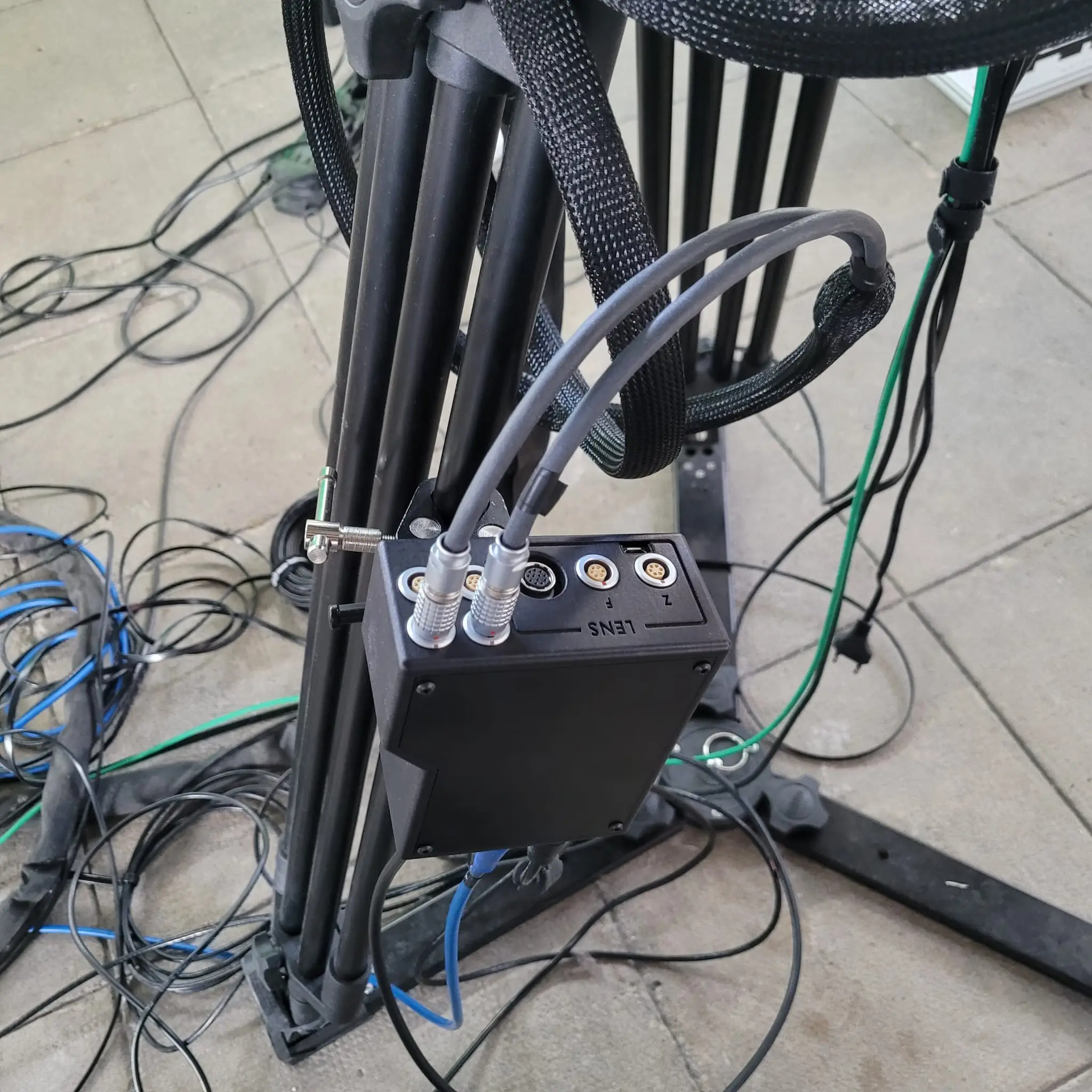

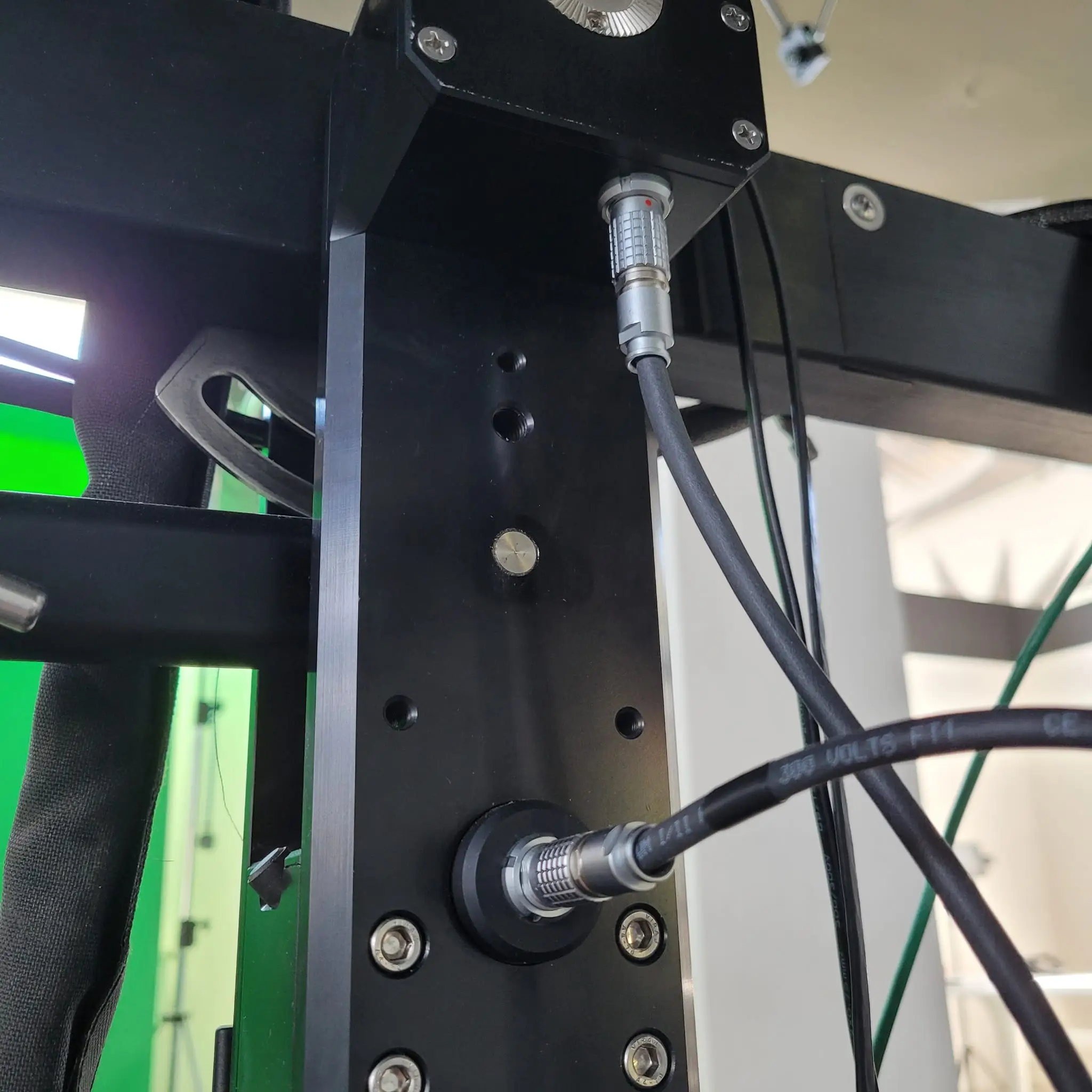

  • plug Pan and Tilt encoder cable from E-Jibo into 1 and 2 LEMO port

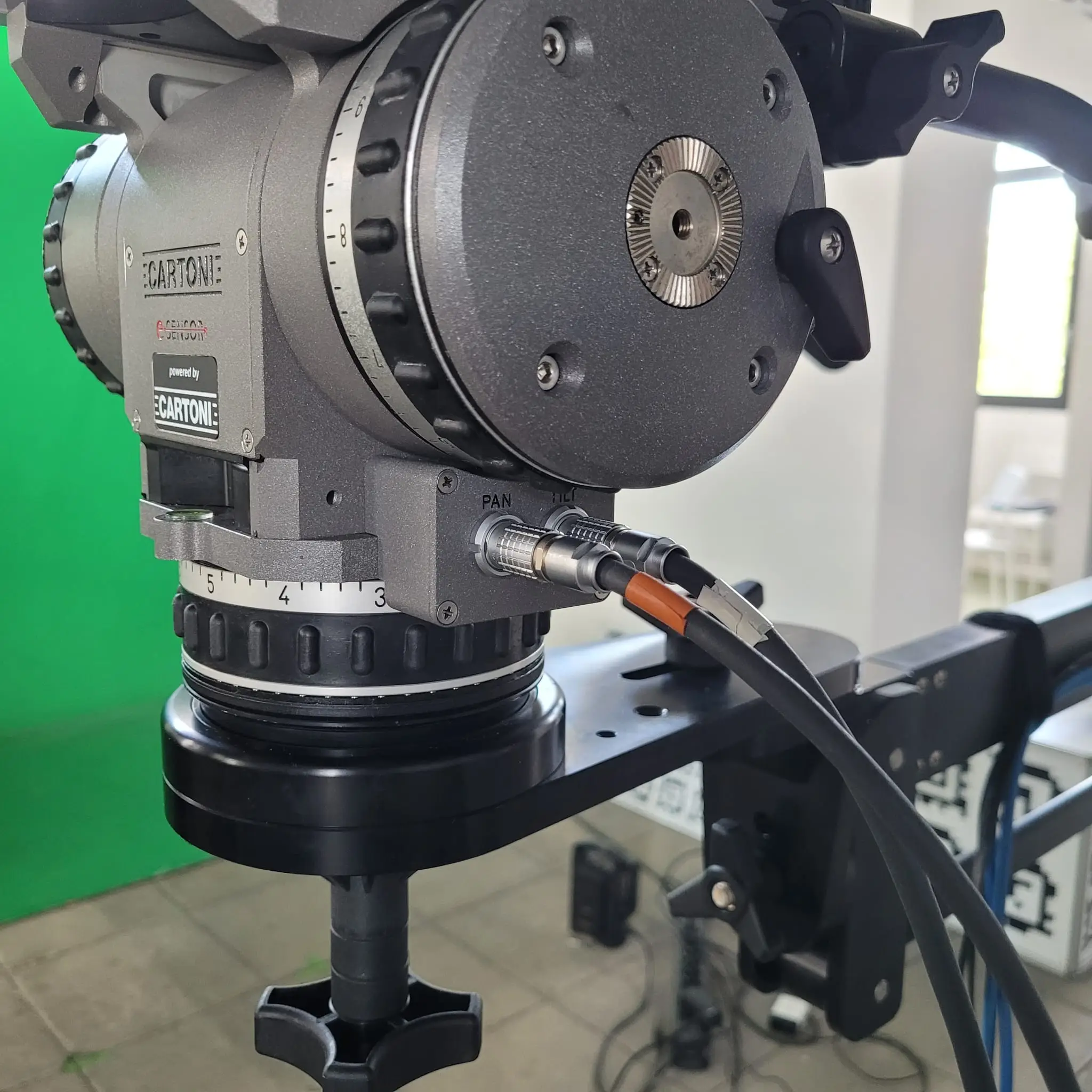

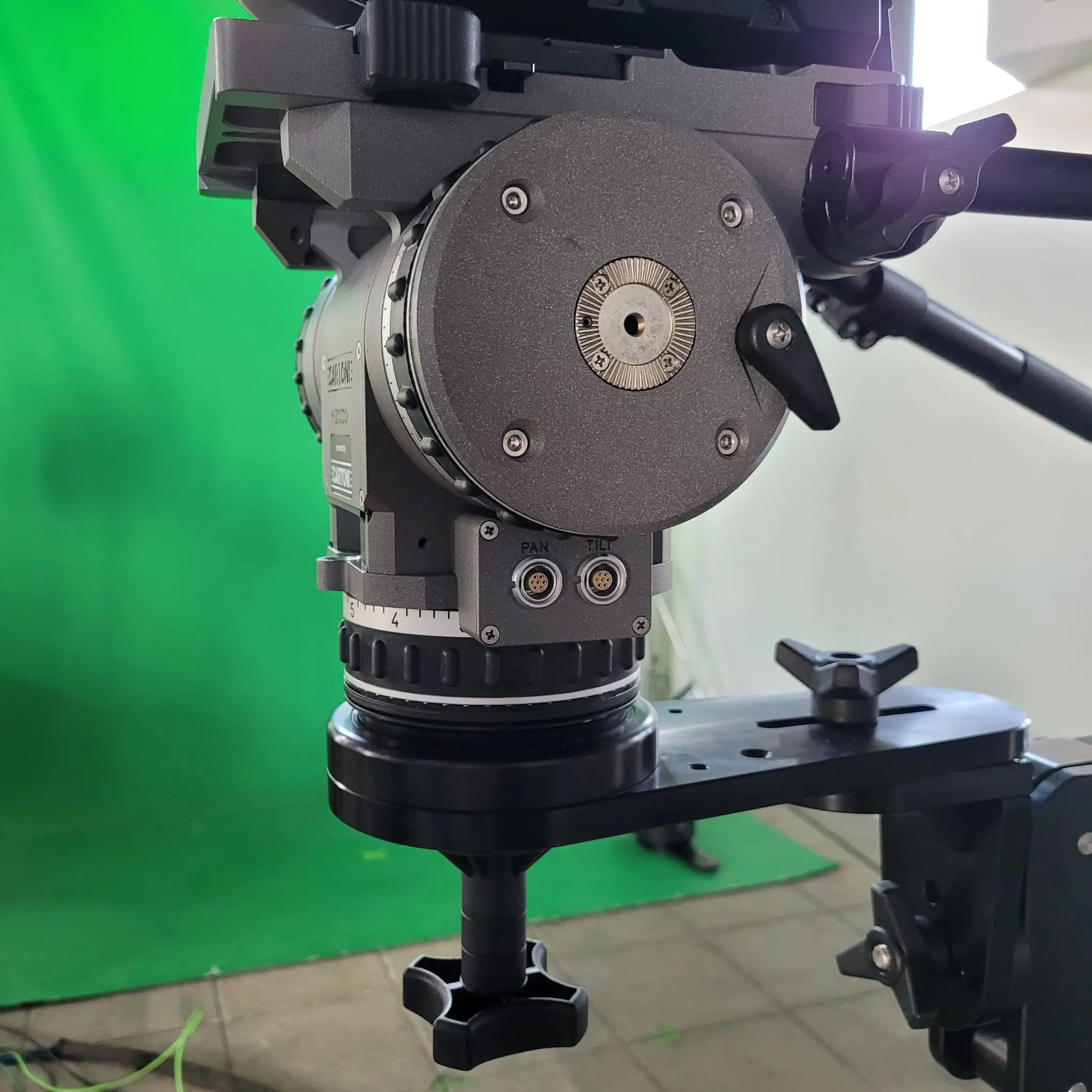

  • plug Pan and Tilt encoder cable into Fluid Head port

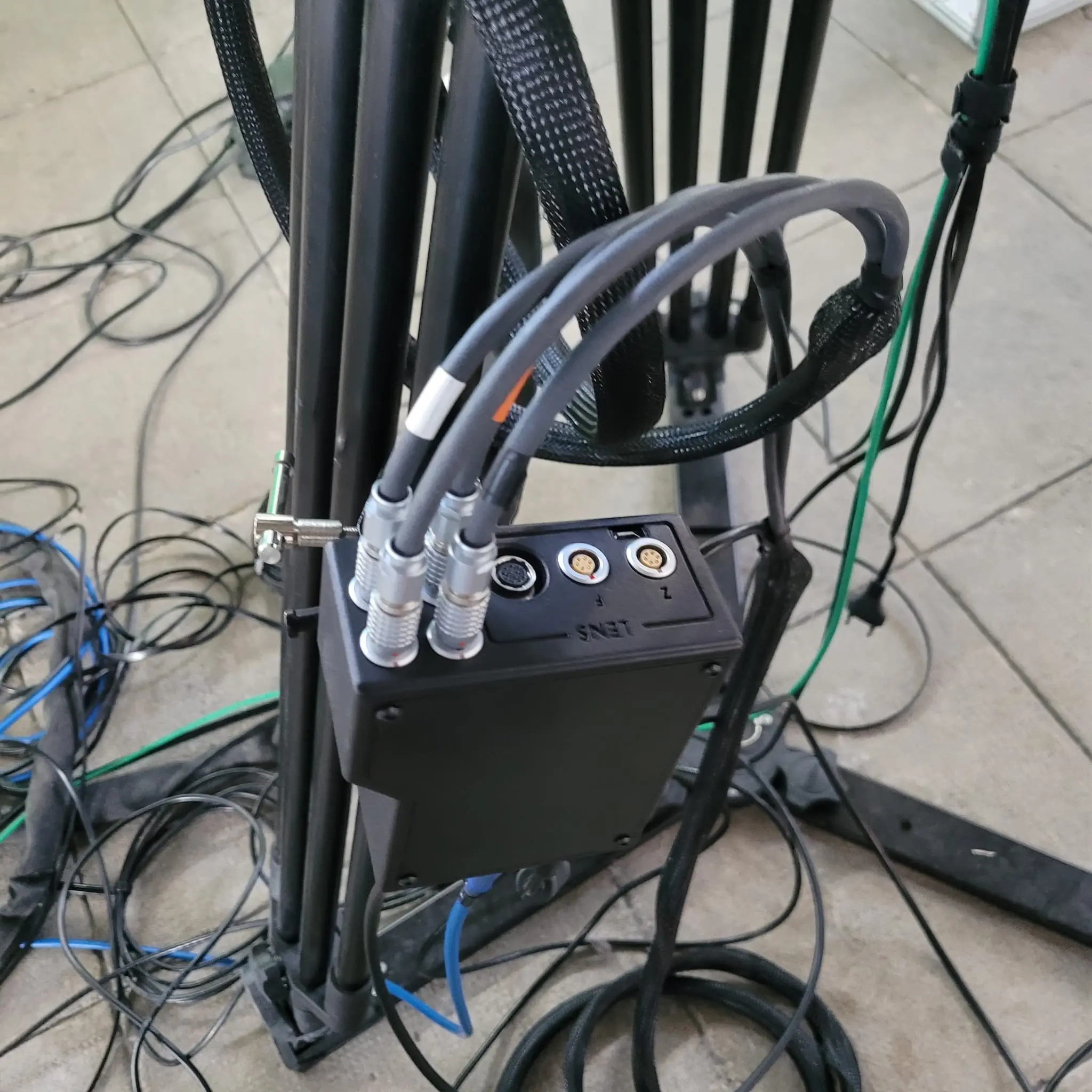

  • plug Pan and Tilt encoder cable from Fluid Head into 3 and 4 LEMO port
